The OKTOPUS® GL-KN 1000, available at Lincer, is the ultimate solution for handling large-sized glass elements up to 1000 kg. Equipped with extension arms, this machine ensures smooth and precise operations. The optional lowering cylinder allows for a controlled and jerk-free lowering of loads, while the blow-off function accelerates the release of suctioned glass panes. For curved glass panes, the special suction pad adapter facilitates handling convex or concave surfaces with a minimum radius of 2000 mm, lifting up to 800 kg with its 16 suction pads. Even in complete energy breakdowns, the vacuum in each pad remains for at least 5 minutes, ensuring secure lowering. Ideal for construction sites, this machine handles flat, concave, or convex glass panes with ease. Trust Lincer for your glass handling needs, and experience unparalleled safety and efficiency with the OKTOPUS® GL-KN 1000.
10 suction pads ∅ 400 mm: up to 1000 kg (flat glass panes)
16 suction pads ∅ 280 mm: up to 800 kg (flat glass panes and curved glass panes)
Features
- Weight: depending on the equipment ca. 90 kg – 180 kg
- Suction pads: 10 pcs. Ø 400 mm and 16 pcs. Ø 280 mm
- Vacuum generation: electrical vacuum pump
- Operation: operating lever on the device
- Vacuum system: dual-circuit system for construction site use
- Nominal pressure pneumatic system: -0,65 bar to – 0,73 bar
- Power supply: 24 V DC battery system
- Optional facilities and equipment:
- crane arm with hydraulic lowering cylinder
- blow-off function
- cable remote control
- radio remote control
- preparation of the basic device to operate a counterweight balancer
- Optional equipment:
- adapter for handling curved glass panes (R => 2.000 mm)
- transport cart, large with forklift adapter
- transport cart small, two-piece
- Movements:
- Lifting and lowering: by the crane hook
- Rotating horizontally: in the crane hook, manually 360°
- Rotation suction frame: manually 360°, lockable every 45°
- Tilting suction frame: manually 0-90°, optional with locking function in 18° increments

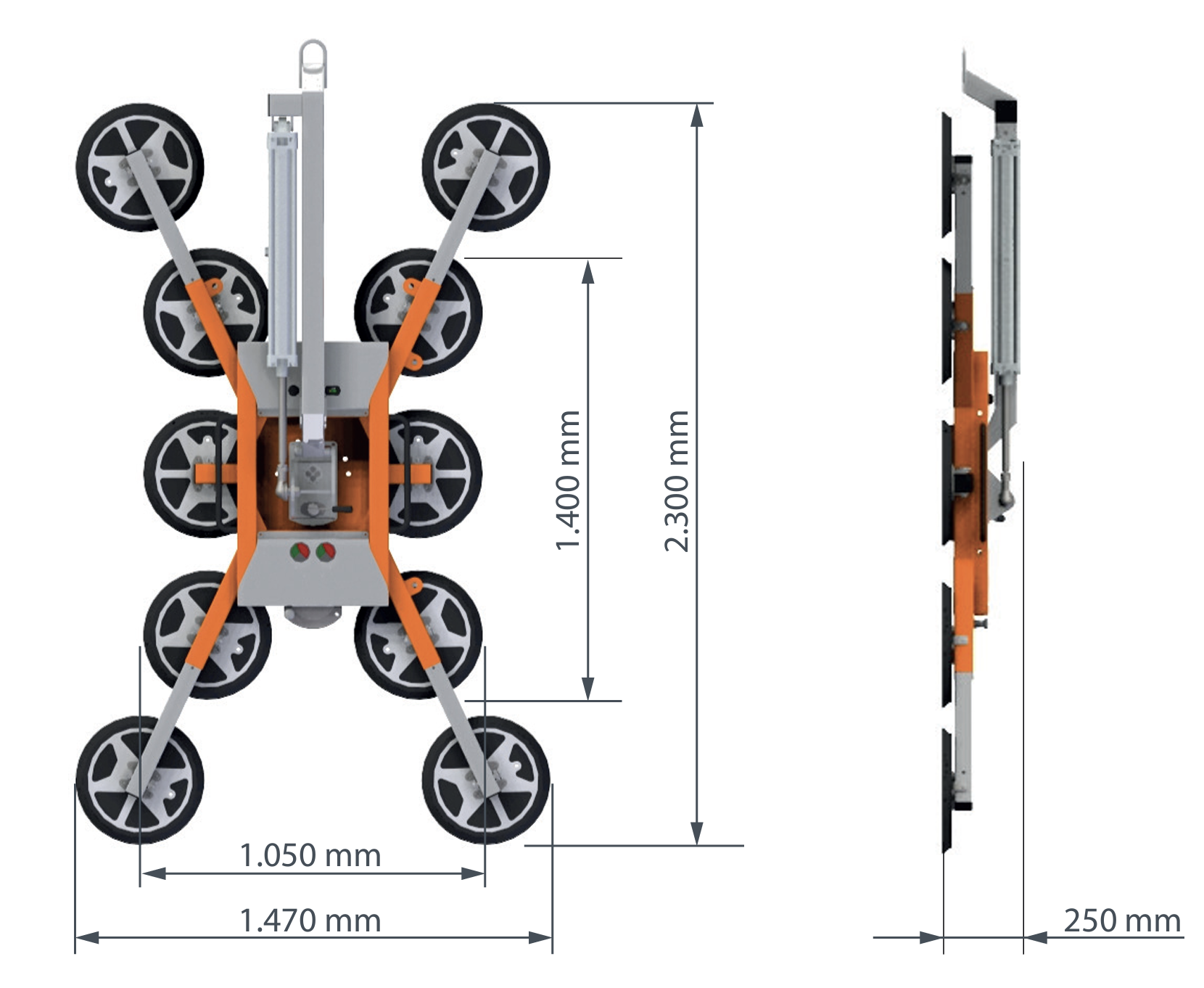

Dimensions
