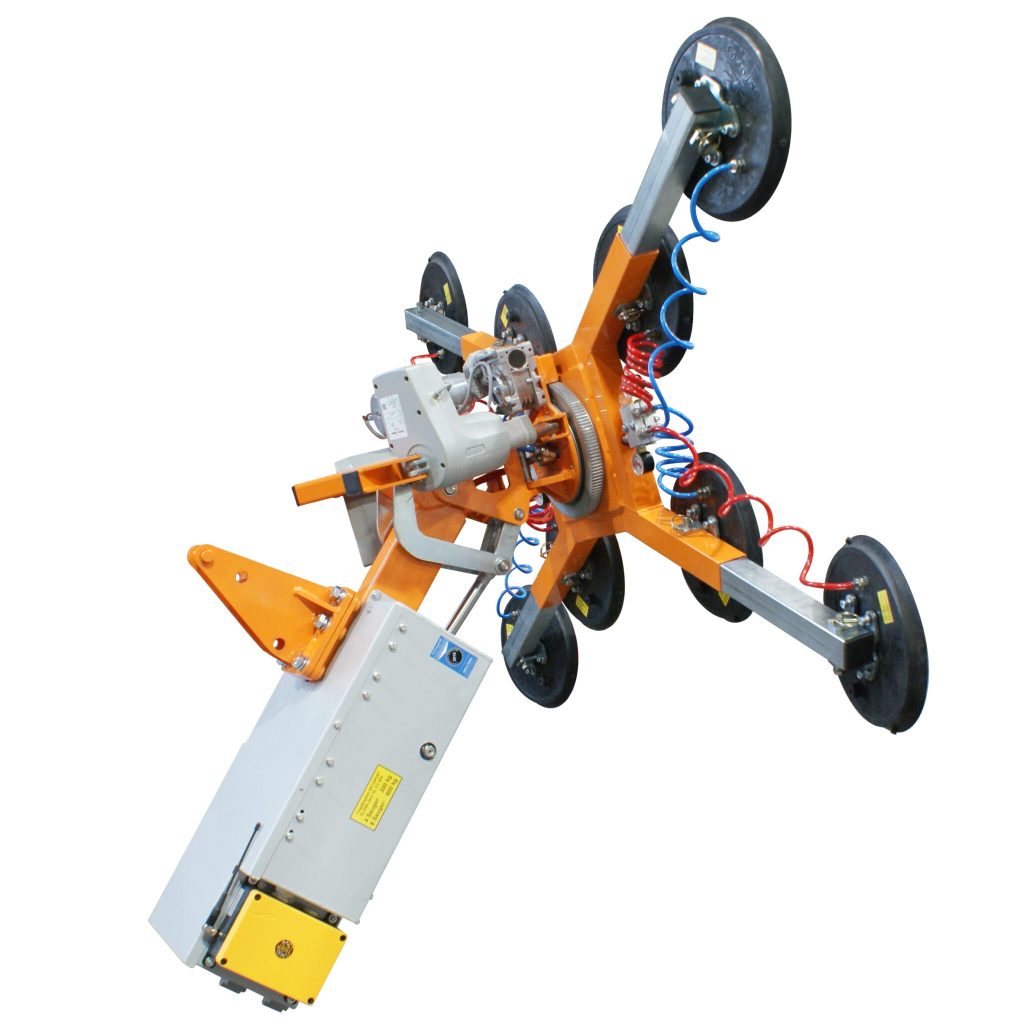

At Lincer, the OKTOPUS® GL-CC 600 DES is your go-to solution for handling glass panes and window elements up to 600 kg. Equipped with a dual-circuit vacuum system and a 24 V DC battery with quick-change capability, it ensures efficiency and safety. Optical and acoustical warnings highlight deviations, and in a complete energy breakdown, the vacuum holds for at least 5 minutes.
This versatile device attaches to mini cranes and truck loader cranes, enabling glazing in difficult areas. The suction frame tilts hydraulically by 120°, rotates electrically by 360°, and swivels by ±35°. Operated via radio remote control, it’s perfect for both flat and curved panes. Rely on the OKTOPUS® GL-CC 600 DES for precision and reliability in all your glass handling tasks.
flat glasses: 4 suction pads, Ø 300 mm: up to 300 kg.
flat glasses: 8 suction pads, Ø 300 mm: up to 600 kg
concavely curved panes (bending radius ≥ 2 m): 12 suction pads, Ø 280 mm: up to 600 kg
convexly curved panes (bending radius ≥ 2 m): 12 suction pads, Ø 280 mm: up to 450 kg
Features
- Weight:
- approx. 125 kg with suction frame for flat glasses, 4 pcs. suction pads Ø 300 mm
- approx. 145 kg with suction frame for flat glasses, 8 pcs. suction pads Ø 300 mm
- approx. 170 kg with suction frame for curved glasses, 12 pcs. suction pads Ø 280 mm
- Suction pads:
- 4 / 8 pcs. Ø 300 mm for flat glasses
- 12 pcs. Ø 280 mm for curved glasses
- Suction frame:
- 750 * 850 mm with 4 pads for flat glasses, WLL 300 kg
- 1,180 * 1,770 mm with 4 / 8 pads for flat glasses, WLL 300 / 600 kg
- 1,000 * 1,600 mm with 12 pads for flat glasses, WLL 300 / 600 kg
- Vacuum generation: vacuum pump
- Operation: radio remote control
- Power supply: battery quick change system, rechargeable battery, 24 V DC
- Optional facilities:
- connecting adapter for telescopic forklift (telehandler)
- spare battery quick change box with battery charger
- blow-off function
- Optional equipment:
- 2-fold speed control
- 25 m cable reel
- Movements:
- Lifting and lowering: by crane boom or telescopic forklift (telehandler)
- Rotating suction frame: electrically, 360° endless
- Tilting suction frame around horizontal axis: hydraulically, 120°
- Swiveling suction frame around vertical axis (left/right): electrically, ± 35°
- In combination with fork truck adapter
- Side shift (left/right): ± 100 mm
- Telescopic main boom (forward/backward): 300 mm
Dimensions
