The brilliant crane, with performances that until now were considered impossible. M 4000 is an exclusive project of BG LIFT,born from the need to create a compact and light crane, but at the same time strong and powerful as his colleagues of higher dimensions. The results? More than 42 meters of horizontal outreach and almost 40 Ton of maximum lifting capacity in a reduced chassis, agile and extremely maneuverable

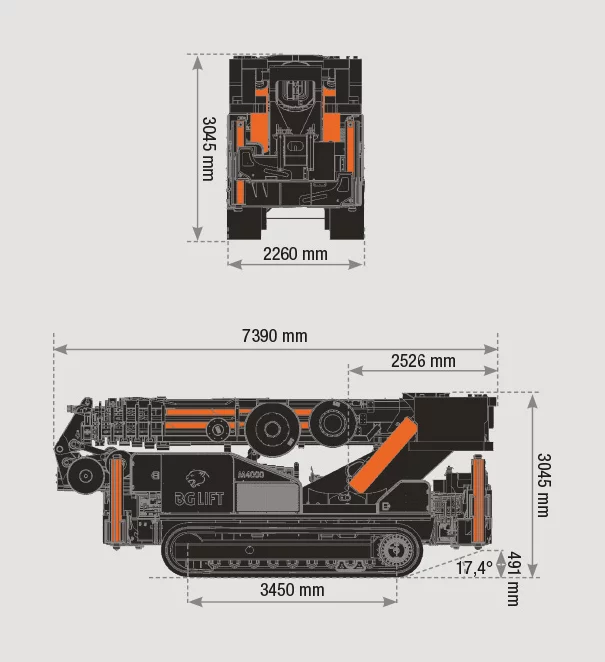

Dimensions ( h × w × l ) 3045 × 2260 × 7390 mm
Weight (excluding accessories) 27,900 kg
Lifting capacity 40,000 kg
Maximum lifting height with hydraulic jib (from ground) 48 m
Maximum working radius with hydraulic jib (optional) 42.5 m
Maximum lifting depth (below ground) -105 m
Electric Engine Always Allowed.
Three-phase electric motor 15 kW with 380 V inverter.
Every Function Under Control.
The multifunction proportional radio control with integrated display also allows real-time monitoring.
Smart Stability Control.
The integrated electronic stability control system automatically adjusts the crane’s lifting capacity based on the position of each stabilizer.
No Limits Rotation.
Endless rotation without obstructions thanks to a counterweight-free boom.
Always Ready To Work.
The special chassis and “V”-shaped stabilizers allow working even in front of the cabin.
Easy To Drive.
Can stabilize and operate on uneven or sloped terrain.
Jib Over Line.
+15° jib angle, ideal for overcoming obstacles.
Jib Ready to Use.
Jib folded under the main boom and always operational.
| Specification | Value |
|---|---|
| Maximum crane load | 40,000 kg / 3 m |
| Maximum working radius | 26.20 m |
| Maximum boom radius with hydraulic jib (optional) | 42.50 m |
| Maximum boom height | 30.80 m |
| Maximum height with hydraulic jib (optional) | 48 m |
| Rotation angle / Rotation speed | Continuous / 2 rpm |
| Winch (optional) | Direct pull: 4,000 kg Rope length: 130 m Direct pull speed: 37 m/min |
| Remote control | Scanreco CAN-Bus + Display |
| Load limiter | Electronic |
| Stabilization | H + H |
| Component weight | Standard crane (with winch): 18,400 kg Jib: 2,120 kg Electric motor: 180 kg |
| Electric motor (optional) | Power supply: 380 V Maximum power: 15 kW + inverter |
